DSPPA AUDIO MATRIX PAGING SYSTEM
​
The MAG808 digital audio matrix & paging controller is highly integrated, which is catering for multi-zone paging and multi-sources selection.It supports 8 balanced audio inputs and 8 balanced audio outputs, remote paging, remote panel control, remote computer & Android pad control. It supplies with multiple audio inputs. Besides 8 AUX inputs, it also supports MP3 playing (built-in or external USB) and built-in FM. To better adapt to the emergency system, it supports TEL paging to all zones, one-touch alarm, 8 dry contact inputs and 1 dry contact output.
​
MAG 808 Series is a complete solution for multi-zone, multi-functional venues like entertainment place, large-scale hotel, sports centres, shopping mall, airport etc.
8×8 Digital Audio Matrix
MAG808.
7” touch screen, built-in control software, integrated with audio matrix, zones, timing, voice alarm, etc.
8 channel balanced audio inputs, 8 channel balanced audio outputs, each channel with individual EQ control
Each zone support remote panel control, including audio selection, audio input and volume control
Support 4 remote paging microphone, 2 local Mic with phantom power supply
Support MP3 playing (built-in audio or external USB), FM. Built-in 4G memory sti
8 Zones Panel with Mic
MAG 808C
RJ45 port power and control interface
Balanced audio input and output
Clear audio signal level indicator
Independent volume control and audio source selection for each zone
MP3 via USB input with independent volume control
1 line input and 1 MIC input with independent volume control Bottom box size: 144x80x45mm
8 Zones Panel with Mic
MAG 808C
RJ45 port power and control interface
Balanced audio input and output
Independent volume control and audio source selection for each zone
86 case for in wall installation
Bottom box size: 86x86x33mm

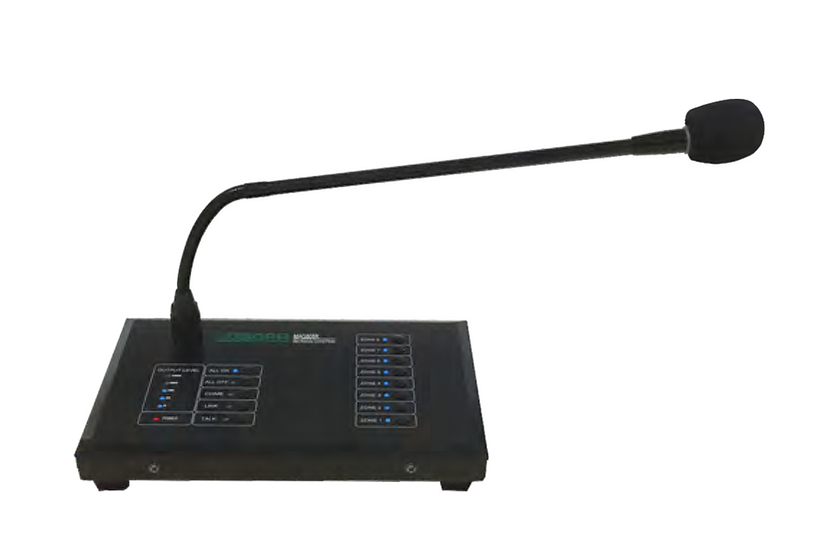

8 Zones Paging Microphone
MAG 808R
8 zones control
Clear signal level indication
Built-in chime signal for paging
Adjustable volume of MIC and chime
Adopts D626 goose-neck microphone
RJ45 interface, support long distance transfer
MAG808 8×8 Digital Audio Matrix
